HXGN-12 Metal Enclosed Looped Network Switchgear Assembly

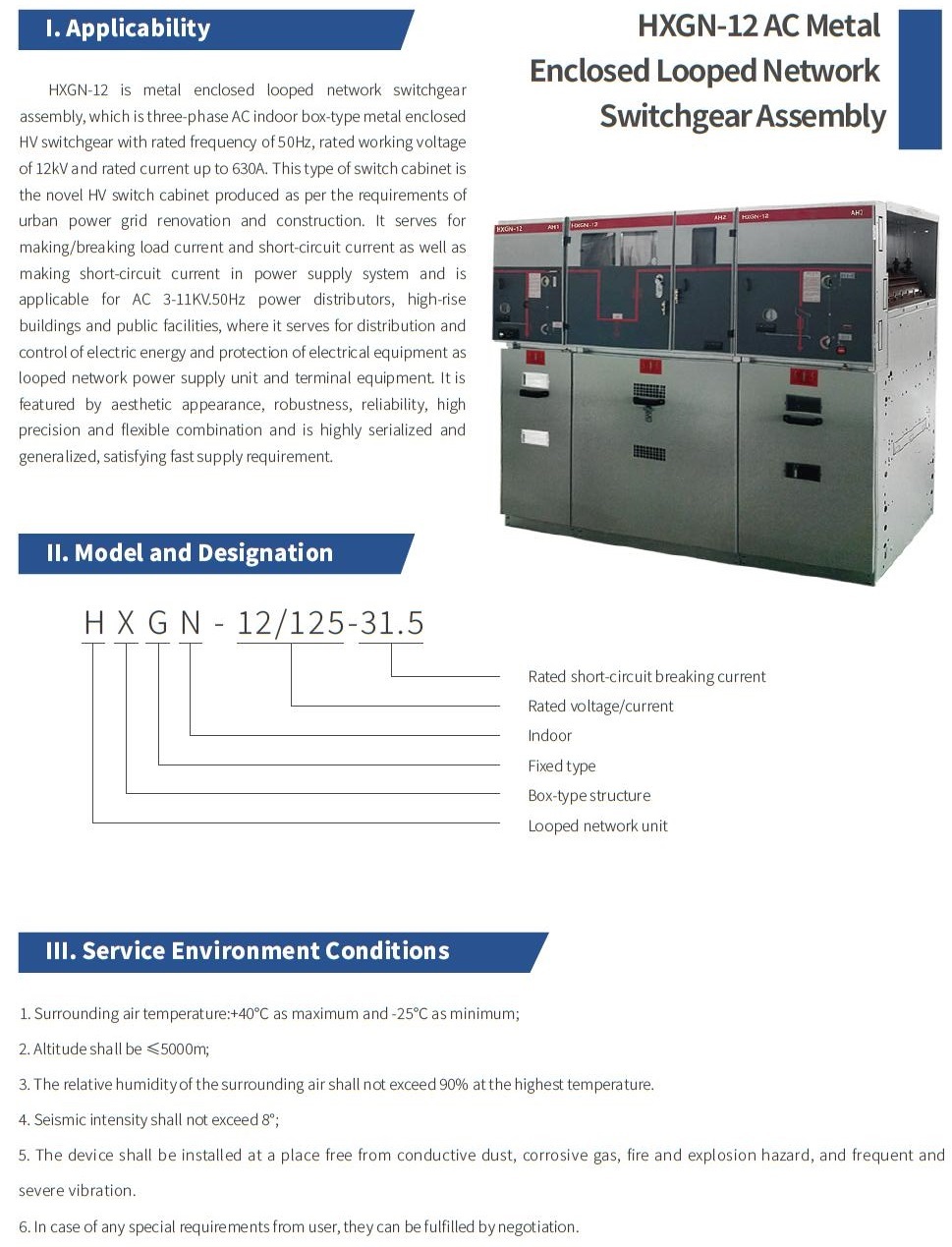

HXGN-12 is metal enclosed looped network switchgear assembly, which is three-phase AC indoor box-type metal enclosed HV switchgear with rated frequency of 50Hz, rated working voltage of 12kV and rated current up to 630A. This type of switch cabinet is the novel HV switch cabinet produced as per the requirements of urban power grid renovation and construction. It serves for making/breaking load current and short-circuit current as well as making short-circuit current in power supply system and is applicable for AC 3-11KV.50Hz power distributors, high-rise buildings and public facilities, where it serves for distribution and control of electric energy and protection of electrical equipment as looped network power supply unit and terminal equipment. It is featured by aesthetic appearance, robustness, reliability, high precision and flexible combination and is highly serialized and generalized, satisfying fast supply requirement.
